Hobart 00-419670-00002 Fryer Hi-Limit Thermostat Bulb 1/4" X 4-1/2" 30" CAP 450°F
Special Price $149.84 Regular Price $230.88
In stock
SKU
00-419670-00002
Manufacturer:

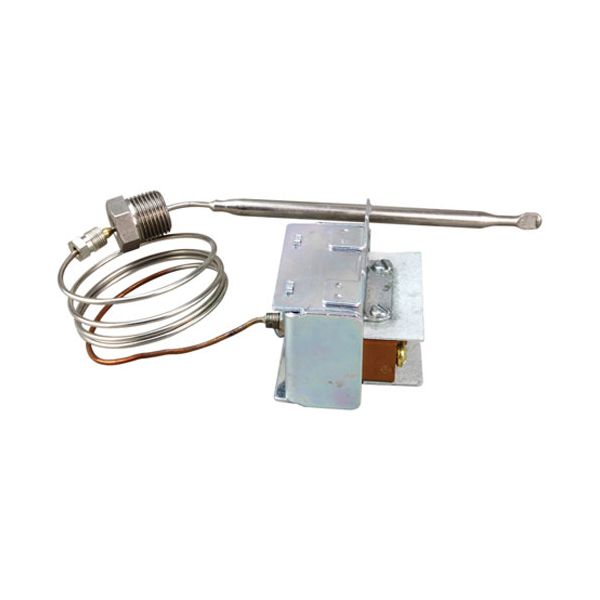

The Hobart 00-419670-00002 Hi-Limit Thermostat monitors fryer oil temperature and interrupts the heating circuit when it reaches 450°F, assisting to prevent overheating conditions. Its 1/4" X 4-1/2" bulb and 30-inch capillary tube transfer temperature changes from the sensing bulb to the thermostat mechanism allowing it to react to excessive heat levels. This component is typically installed within the fryers temperature control and safety system with the sensing bulb positioned in the fry pot and the control apparatus mounted inside the equipment housing. It operates as an essential part of the fryers shutdown operation.
Dimensions
- Length: 7 In
- Width: 1.5 In
- Height: 2 In
- Weight: 0.45 lbs
Product Notes
- Hi-Limit, 450F, 232C,
- Cap 30", Bulb 1/4" X 4-1/2", 3/8" Mpt Stuffing Box,
- Lccm, Auto Reset, Millivolt
- Vulcan 1Gr45C, 1Gr45D, 1Gr45M, 1Gr65C, 1Gr65D, 1Gr65M,
- 1Gr85C, 1Gr85D, 1Gr85M, 1Grc35, 1Grc45, 1Grc65, 1Grd45,
- 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4, Ef5,
- Gr35F, Gr45F,
- Gr65F, Gr85F, Grc35F, Grc45F, Grc65F, Grc85F, Grd35F,
- Grd45F, Grd65F, Grd85F, Grs35F, Grs45F, Grs65F, Grs85F,
- Vf2, Vf2D, Vmf2, Vmf2D
