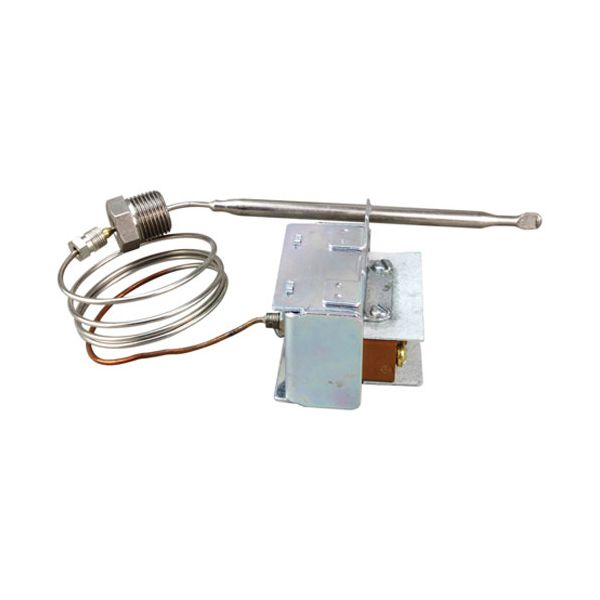

main product photo

Atosa 301030005 Fryer High-Limit Thermostat 450°F Cap 30"

Rating:
5 5 8
8  Reviews Add Your Review
Special Price $148.02 Regular Price $228.08
In stock
SKU
301030005
Add to Wish List
Fryer Parts,
Manufacturer:
The Atosa 30⁠1030⁠005 High-Limit Thermosta‍t 450‍°F Cap 30" activates wh‌en fryer temperature rises to​ a‌ pres‌et limit‍,‍ int‌errupti‍ng power to h‍eat⁠ing eleme‌n⁠ts. It senses excess⁠ive h‌eat through its capill⁠ary tube and triggers a sa​fety​ cut​off response wi⁠thin the‍ appliance control cir‌cuit,‌ avoiding further heating un‍til the system is ma​nuall​y re​set afte‌r cool​ing.⁠ Typically installed i‌n fryer control‌ housing or safety cir‌cuit ass​embl‍y, the thermostat​ conne⁠cts​ inline with the heating system to⁠ monitor temperature and shut off operation at‌ high limits that should provide protection.

Dimensions

  • Weight: 0.563 lbs
https://partsfe.com/media/catalog/product/a/t/atosa-301030005-fryer-hi-limit-thermostat-450-f-cap-30-96331-2.jpg

A fryer hi-limit thermostat used in commercial fryer equipment to monitor oil temperature and interrupt operation if unsafe temperature levels are reached. This thermostat features a 450°F (232°C) temperature limit with a 30" capillary tube and a 1/4" x 4-1/2" sensing bulb for temperature detection inside fryer systems. The auto-reset design allows the control to return to operation after temperature conditions normalize. The 3/8" MPT stuffing box supports installation in compatible fryer equipment using millivolt control systems. This thermostat is used in commercial gas fryers to help manage high-temperature protection during cooking operation. Replacing a failed or inaccurate hi-limit thermostat may help restore proper temperature safety control and reduce shutdown issues caused by overheating conditions.

Equipment Compatibility:
Applications for Atosa Fryer Hi-Limit Thermostats include commercial gas fryer systems used in restaurants, institutional kitchens, and foodservice cooking operations. This Fryer Hi-Limit Thermostat 301030005 is compatible with commercial equipment from leading brands such as Atosa, Vulcan Hart, Hobart, Avantco, Adcraft, Maxx Cold, and U-Line, and more, where fryer temperature limit control and overheating protection functions are required for operation.

Brand Compatibility:
Replaces multiple part numbers across various commercial fryer equipment brands, including Atosa, Vulcan Hart, Hobart, Avantco, Adcraft, Maxx Cold, and U-Line. Refer to the “Replaces Parts” section for complete cross-reference details.

Product Specifications:
Manufacturer: Atosa
SKU: 301030005
Product Type: Fryer Hi-Limit Thermostat
Temperature Rating: 450°F / 232°C
Capillary Length: 30"
Bulb Size: 1/4" x 4-1/2"
Connection Type: 3/8" MPT Stuffing Box
Reset Type: Auto Reset
Control Type: Millivolt
Application: Commercial Fryer Equipment

Key Features:

  • 450°F hi-limit setting helps manage fryer over-temperature conditions
  • 30" capillary tube supports installation in compatible fryer systems
  • 1/4" x 4-1/2" sensing bulb monitors fryer oil temperature
  • Auto-reset design returns control operation after temperature conditions normalize
  • 3/8" MPT stuffing box supports installation in compatible fryer equipment
  • Used in millivolt commercial fryer control systems
  • May help restore proper high-limit temperature control after replacement

The fryer operation returned more normally after installation of the new thermostat.

Replaces Parts
ATOSA:
AVANTCO:
ENTR?E:
MAXX COLD:
16031A
U-LINE:
LCCM20030000
Reviews 8
Write Your Own Review
You're reviewing:Atosa 301030005 Fryer High-Limit Thermostat 450°F Cap 30"
Your Rating
Related Posts
  1. How to Clean Grill Grates: Effective Methods
  2. The Best of 2024 Food Expos: Restaurant Trends to Watch
  3. How to Replace a Commercial Oven Heating Coil: Step-by-Step Guide
  4. Fryer Essentials: Maintaining Deep Fryer Pot and Frying Basket for Commercial Kitchen
FAQS
Customer Questions
Can a faulty Hi Limit Thermostat affect equipment performance?

Yes, a faulty thermostat can lead to unsafe operatHow to test a oven thermostat ing conditions, equipment damage, or even fires due to overheating. It's crucial to ensure the thermostat is functioning correctly to maintain safe and reliable operation.

Why is the Hi Limit Thermostat important?

The Hi Limit Thermostat is essential for preventing equipment overheating, which can lead to safety hazards, damage to the appliance, and potentially even fires. It helps maintain safe operating conditions.

How to test an oven thermostat?

To test an oven thermostat:

  • Place an oven-safe thermometer on a rack inside the oven.
  • Set the oven to a specific temperature.
  • Wait for the oven to heat up and stabilize.
  • Check if the thermometer reading matches the set temperature.
  • If the readings differ significantly, the thermostat might be faulty and needs repair or replacement.

What maintenance is required for the Atosa 301030005 Hi-Limit Thermostat?

Regularly inspect the thermostat wiring and probe connection to ensure secure attachment and proper temperature sensing. Test the hi-limit function periodically to confirm it shuts off heating at the rated temperature to prevent overheating. Check for grease buildup or corrosion around the sensor area and clean gently when needed. Always disconnect power before servicing to maintain safe operation.

What are common issues with the Atosa 301030005 Hi-Limit Thermostat?

  • Inconsistent temperature readings.
  • Thermostat failing to shut off at set limits.
  • Electrical connection faults.
  • Overheating or uneven heating of fryer oil.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas and electrical supply.

Step2: Drain oil below the sensing bulb level.

Step3: Access the thermostat housing and disconnect wiring.

Step4: Remove the capillary bulb and mounting hardware.

Step5: Install the new hi-limit thermostat, secure the bulb properly, reconnect wiring, and test safety cutoff.
