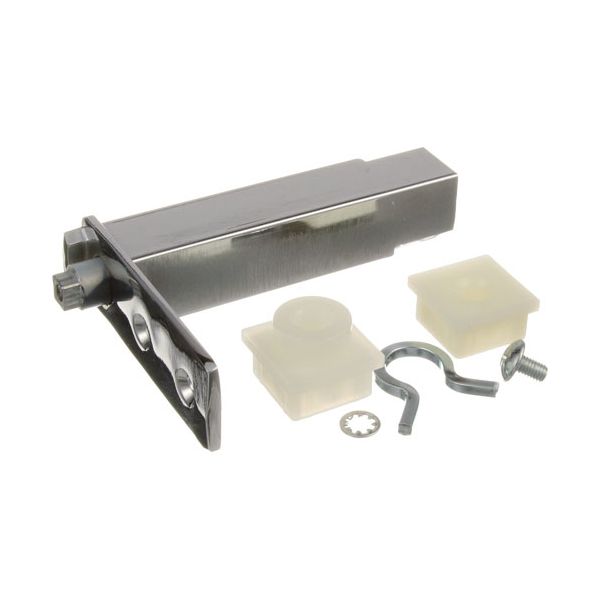

Beverage Air 00C34030D01 Concealed Hinge

Be the first to review this product
Special Price $13.70 Regular Price $51.89
In stock
SKU
00C34030D01
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Beverage Air 00C34030D01 Concealed Hinge controls the movement of the door by employing an internal spring and cam system to control the opening and closing motion. The hidden cartridge directs the door through a fixed pivot as it manages tension when used repeatedly. This hinge is fitted in the door frame and is not visible at the top or bottom of the cabinet opening. It is designed to be a self-contained assembly, which is compatible with other doors and frames to aid in alignment.

Dimensions

  • Length: 4.5 In
  • Width: 3.125 In
  • Height: 4.5 In
  • Weight: 0.52 lbs
https://partsfe.com/media/catalog/product/b/e/beverage-air-00c34030d01-power-cartridge-concealed-hinge-55332-2.jpg

Product Notes

  • Power Cartridge, Top 3" Od W/ 1" Ctrs Mount Holes
  • Body 3-13/16" Long
  • Used Wih Left Or Right Mounting Brackets
  • Series Chg R56, Standard Kiel 2856,
  • Beverage Air Cfg24, Cfg36, Cfg48, Cfg74, Crg24, Crg36,
  • Crg48, Crg74, Kf12, Kf24, Kf36, Kf48, Kf74, Kr12, Kr24,
  • Kr36, Kr48, Kr74, Ucr27
  • Norlake Refrigerator Nr(211,482,763), Lr(152,192)
  • Freezer Nf(211,482,763), Zf081Sms-22 (Dq Topping Freezer)
  • T-23-2, Tssu 36-12Mb, Tssu 48-18Mb, Tssu Series, Tssu-48,
  • Tssu-48-8-47, Tuc-48, Tuc-60, Tuc27F, Twt-48, Twt-60, Twtf
  • Traulsen Cu27, Cu48, Cu60, G12000, G12001, Tu048Qc
BEVERAGE AIR:
00C34-030D-01, 00C34030D01, 401-216A-01, 401-454A-01, BEV401-216A-01, BEV401-454A-01
CHG:
A1808, CHGR56-1010, GR56-1010, R56-1010
HOSHIZAKI:
3A6258-01, HOS3A6258-01
KAIRAK:
KROWNE:
NORLAKE:
SILVER KING:
43425, 99467, SVK99467
STANDARD KEIL:
STAR MFG:
TRAULSEN:
VICTORY:
Reviews
Write Your Own Review
You're reviewing:Beverage Air 00C34030D01 Concealed Hinge
Your Rating
FAQS
Customer Questions
What maintenance is required for the Beverage Air 00C34030D01 Concealed Hinge?

Inspect the hinge regularly for wear, looseness, and alignment issues caused by frequent door movement. Apply light food-safe lubricant if needed and keep debris away from the hinge area to prevent binding or premature wear.

What are common issues with the Beverage Air 00C34030D01 Concealed Hinge?

  • Misalignment causing uneven door movement.
  • Cartridge wear leading to stiff hinge operation.
  • Loose mounting screws causing instability.
  • Squeaking or noise during opening and closing.
  • Reduced smoothness or jerky motion.
  • Sticking hinge under load.
