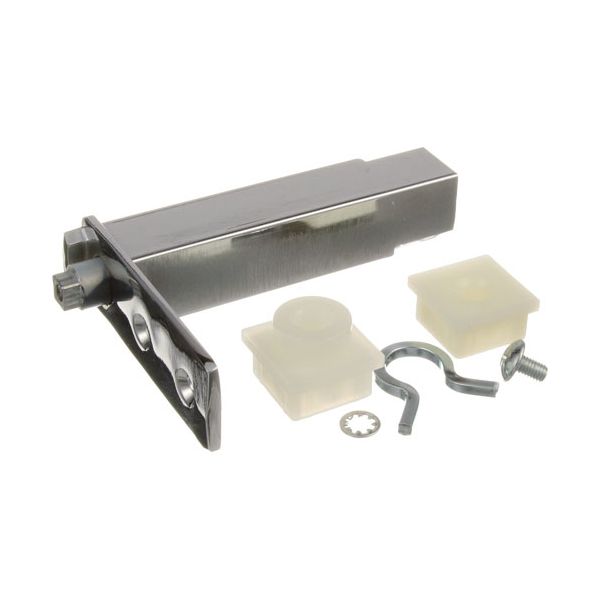

Nor-Lake 015124 Door Hinge Cartridge Assembly

Be the first to review this product
Special Price $13.70 Regular Price $51.89
In stock
SKU
015124
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Nor-Lake 015124 Door Hinge Cartridge Assembly is used to control the movement of the doors by an internal cartridge that regulates the pivot and movement of the door on opening and closing. The hidden mechanism involves the use of built-in parts to move the door along a predetermined axis and the tension of springs. This hinge is fixed in the door frame either at the top or bottom of the cabinet opening and is not visible when the door is closed. It is designed to fit the compatible equipment doors so that the door is aligned with the cabinet structure.

Dimensions

  • Length: 4.5 In
  • Width: 3.125 In
  • Height: 4.5 In
  • Weight: 0.52 lbs
https://partsfe.com/media/catalog/product/n/o/nor-lake-015124-power-cartridge-concealed-hinge-10282-2.jpg

Product Notes

  • Power Cartridge, Top 3" Od W/ 1" Ctrs Mount Holes
  • Body 3-13/16" Long
  • Used Wih Left Or Right Mounting Brackets
  • Series Chg R56, Standard Kiel 2856,
  • Beverage Air Cfg24, Cfg36, Cfg48, Cfg74, Crg24, Crg36,
  • Crg48, Crg74, Kf12, Kf24, Kf36, Kf48, Kf74, Kr12, Kr24,
  • Kr36, Kr48, Kr74, Ucr27
  • Norlake Refrigerator Nr(211,482,763), Lr(152,192)
  • Freezer Nf(211,482,763), Zf081Sms-22 (Dq Topping Freezer)
  • T-23-2, Tssu 36-12Mb, Tssu 48-18Mb, Tssu Series, Tssu-48,
  • Tssu-48-8-47, Tuc-48, Tuc-60, Tuc27F, Twt-48, Twt-60, Twtf
  • Traulsen Cu27, Cu48, Cu60, G12000, G12001, Tu048Qc
BEVERAGE AIR:
00C34-030D-01, 00C34030D01, 401-216A-01, 401-454A-01, BEV401-216A-01, BEV401-454A-01
CHG:
A1808, CHGR56-1010, GR56-1010, R56-1010
HOSHIZAKI:
3A6258-01, HOS3A6258-01
KAIRAK:
KROWNE:
NORLAKE:
SILVER KING:
43425, 99467, SVK99467
STANDARD KEIL:
STAR MFG:
TRAULSEN:
VICTORY:
Reviews
Write Your Own Review
You're reviewing:Nor-Lake 015124 Door Hinge Cartridge Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the Nor-Lake 015124 Door Hinge Cartridge Assembly?

Regularly inspect the hinge cartridge assembly for loose mounting hardware, wear, or alignment issues. Keep the hinge area clean and free from debris to ensure smooth door movement. Disconnect power and support the door properly before performing maintenance or adjustments.

What are common issues with the Nor-Lake 015124 Door Hinge Cartridge Assembly?

  • Door misalignment causing improper sealing.
  • Excessive resistance or stiffness during door movement.
  • Worn hinge components producing noise or sagging.
  • Loose hardware leading to unstable door operation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power to the refrigeration unit before starting installation.

Step2: Open the door and support it securely to prevent shifting.

Step3: Remove the damaged hinge cartridge assembly using the appropriate screwdriver or wrench.

Step4: Align the new Nor-Lake 015124 hinge cartridge assembly with the mounting holes.

Step5: Tighten all hardware securely without over-tightening.

Step6: Test the door for smooth opening and proper alignment before restoring power.
