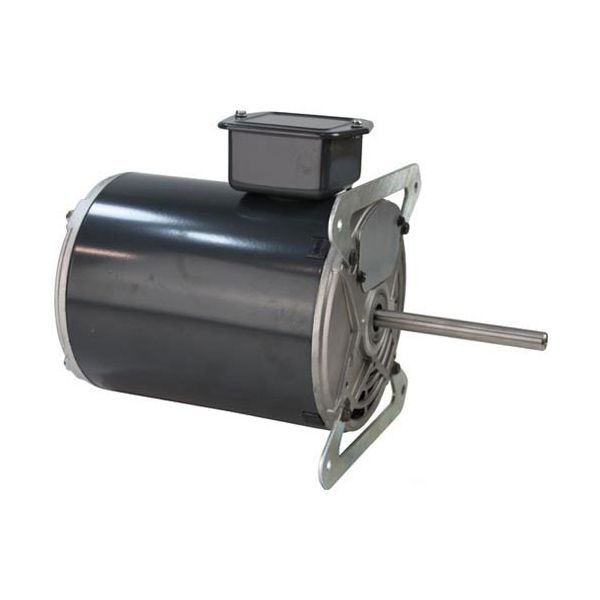

main product photo

Southbend 1194780 OS MAKE LIST Range Blower Motor W/ 2 Flats 1PH 7.2/4.5AMP CW

Be the first to review this product
Special Price $589.30 Regular Price $763.94
In stock
SKU
1194780 OS MAKE LIST
Add to Wish List
Electrical & Hardware, Motors & Pumps, Shop by manufacturers
Manufacturer:

The Southbend 1194780 OS MAKE LIST range Blower Motor is an essential tool in the provision of air circulation in commercial cooking sections to improve the cooking process. This component rotates clockwise at 7.2/4.5 amps, and it is suitable for different Southbend models, which makes it easy to install. Its operation is based on air streaming which, in turn, gives uniform heat distribution and optimal results for cooking. Some of the advantages it highlighted are improved heat control through the stoves, less consumption of energy, and lastly removal of smoke and bad odor in the kitchen.

Dimensions

  • Length: 10.4 In
  • Width: 8.15 In
  • Height: 7 In
  • Weight: 23 lbs
https://partsfe.com/media/catalog/product/s/o/southbend-1194780-os-make-list-range-blower-motor-w-2-flats-1ph-7-2-4-5amp-cw-67535-2.jpg

Product Notes

  • [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
  • [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
  • Frame 56Z, 2 Speed.
  • [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
  • White Common
  • Black Power To Fan Switch - Hi
  • Red Power To Fan Switch - Lo
  • Blue/Purple Or Brown/Brown To Centrifugal Switch.
  • If Oven Does Not Have Centrifugal Switch Then
  • Wire Together W/ Wire Nut.
  • If Only Using For One Speed, Then Wire Nut Red Wire.
  • Southbend
  • Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs
Reviews
Write Your Own Review
You're reviewing:Southbend 1194780 OS MAKE LIST Range Blower Motor W/ 2 Flats 1PH 7.2/4.5AMP CW
Your Rating
FAQS
Customer Questions
What maintenance is required for the Southbend 1194780 Blower Motor?

Clean dust and grease buildup from the motor housing and fan regularly. Inspect electrical connections, bearings, and mounting hardware for tightness and signs of wear. Ensure proper airflow, avoid overheating, and lubricate if manufacturer guidelines specify.

What are common issues with the Southbend 1194780 Blower Motor?

  • Reduced airflow from clogged or imbalanced fan blades.
  • Motor overheating during extended operation.
  • Electrical faults or intermittent power loss.
  • Excessive vibration from worn bearings or misalignment.
  • Unusual noise from internal component wear.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power and gas supply to range; ensure unit is cool; wear gloves before servicing.

Step2: Remove rear panel and access blower housing using screwdriver.

Step3: Disconnect wiring from old motor, label leads for reassembly.

Step4: Unscrew and remove motor assembly carefully.

Step5: Install new motor aligning flats, secure screws firmly.

Step6: Reconnect wiring per labels, ensure tight connections.

Step7: Restore power, test airflow and operation.
