Southbend SOU1177452 Motor W/2-Flats CW 1-Pole 7.2/4.5 AMP
Special Price $617.94 Regular Price $774.36
In stock
SKU
SOU1177452
Manufacturer:

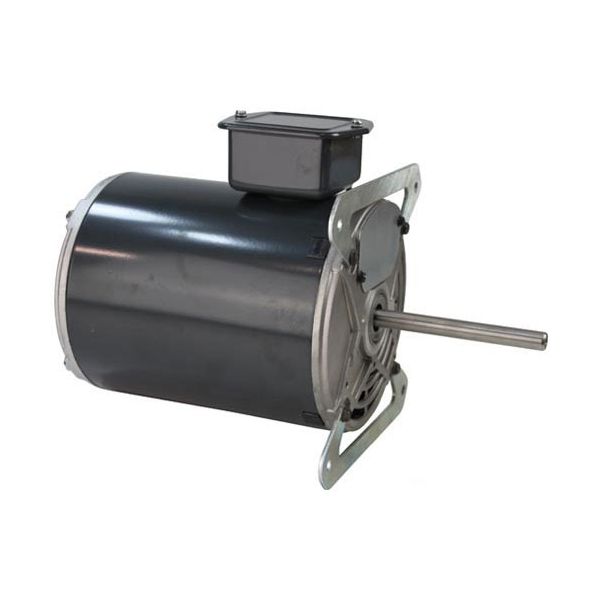

The Southbend SOU1177452 Motor 2-Flats CW 1-Pole, 7.2/4.5 AMP is a replacement electric system, that is used in commercial cooking equipment to drive moving components like a conveyor system or internal blowers. It turns in a clockwise direction and has two flat shafts that fit precisely with compatible couplings and enough torque to ensure constant mechanical operation. The motor is installed in the drive assembly of the appliance, and is connected to the control circuitry to ensure that the appliance moves and operates correctly. It aids in the foodservice kitchen conditions including uniform efficiency and stable equipment efficiency.
Dimensions
- Length: 10.4 In
- Width: 8.15 In
- Height: 7 In
- Weight: 23 lbs
Product Notes
- [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
- [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
- Frame 56Z, 2 Speed.
- [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
- White Common
- Black Power To Fan Switch - Hi
- Red Power To Fan Switch - Lo
- Blue/Purple Or Brown/Brown To Centrifugal Switch.
- If Oven Does Not Have Centrifugal Switch Then
- Wire Together W/ Wire Nut.
- If Only Using For One Speed, Then Wire Nut Red Wire.
- Southbend
- Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs
