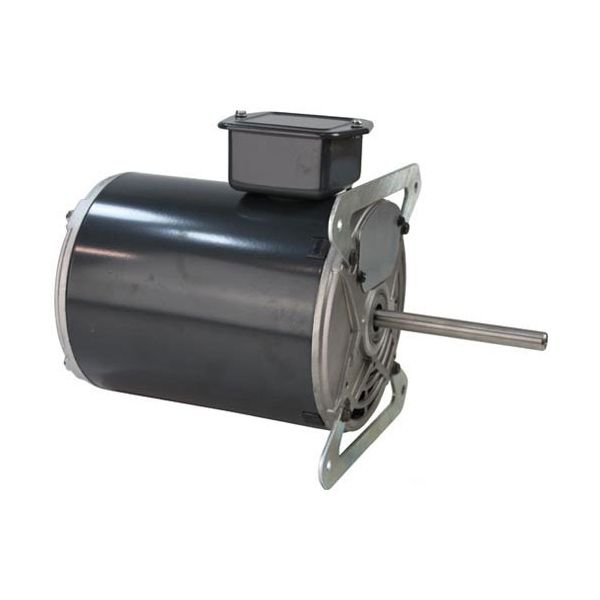

Southbend 4440367 Motor W/2-Flats CW 1-Pole 7.2/4.5 AMP
Special Price $617.94 Regular Price $774.36
In stock
SKU
4440367
Manufacturer:
The Southbend 4440367 Motor 2-Flats CW 1-Pole, 7.2/4.5 AMP is a replacement electric unit that is applied in equipment. It is clockwise and has a two-flat shaft to firmly connect to the parts of the drivetrain which provide the rotational force required to move conveyors, fans or other moving parts. The motor is installed in the mechanical assembly of the appliance and is connected to the control system and drive components to ensure the correct working of the appliance. It is used in foodservice kitchen to maintain the efficiency consistency and equipment operation.
Dimensions
- Length: 10.4 In
- Width: 8.15 In
- Height: 7 In
- Weight: 23 lbs
Product Notes
- [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
- [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
- Frame 56Z, 2 Speed.
- [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
- White Common
- Black Power To Fan Switch - Hi
- Red Power To Fan Switch - Lo
- Blue/Purple Or Brown/Brown To Centrifugal Switch.
- If Oven Does Not Have Centrifugal Switch Then
- Wire Together W/ Wire Nut.
- If Only Using For One Speed, Then Wire Nut Red Wire.
- Southbend
- Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs
