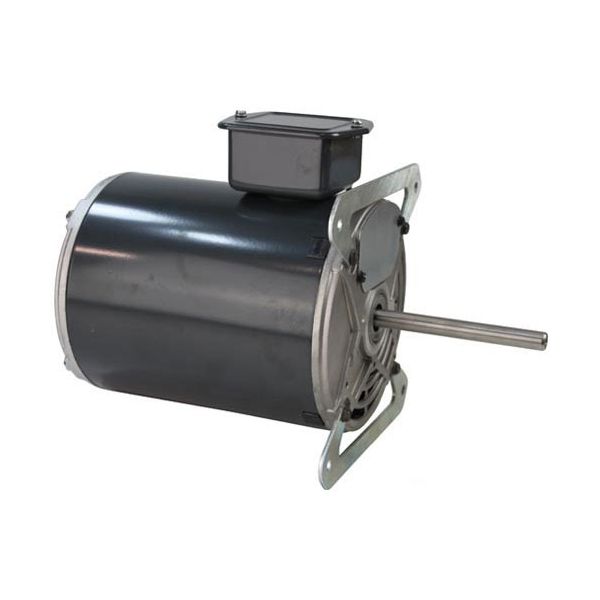

Southbend 4440300 Motor W/2-Flats CW 1-Pole 7.2/4.5 AMP
Special Price $617.94 Regular Price $774.36
In stock
SKU
4440300
Manufacturer:
The Southbend 4440300 Motor 2-Flats CW 1-Pole 7.2/4.5 AMP is a replacement electric unit in commercial cooking equipment . It is clockwise and has a two flat shaft to firmly connect to the parts of the drivetrain, which provide the rotational force required to move conveyors, fans, or other moving parts. The motor is installed in the mechanical assembly of the appliance and is connected to the control system and drive components to ensure the correct functioning of the appliance. It is used in foodservice kitchen to maintain the efficiency and operation of equipment.
Dimensions
- Length: 10.4 In
- Width: 8.15 In
- Height: 7 In
- Weight: 23 lbs
Product Notes
- [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
- [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
- Frame 56Z, 2 Speed.
- [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
- White Common
- Black Power To Fan Switch - Hi
- Red Power To Fan Switch - Lo
- Blue/Purple Or Brown/Brown To Centrifugal Switch.
- If Oven Does Not Have Centrifugal Switch Then
- Wire Together W/ Wire Nut.
- If Only Using For One Speed, Then Wire Nut Red Wire.
- Southbend
- Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs
