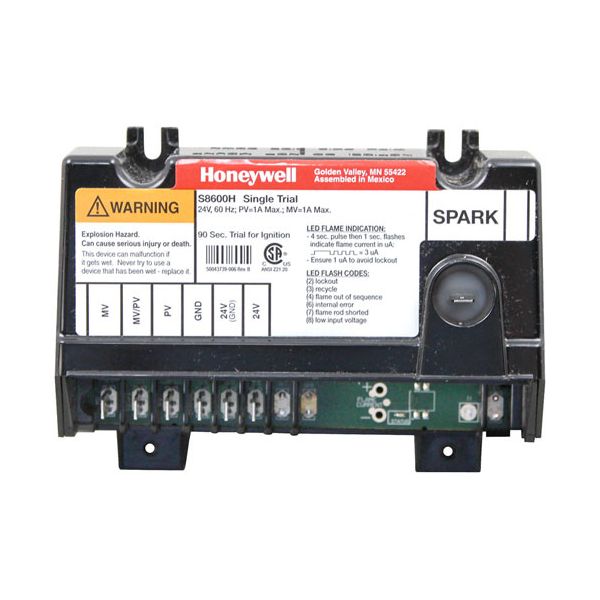

Hobart 00-426225-00001 Fryer Ignition Control Module 24V F429 CA-146
Special Price $197.79 Regular Price $387.03
In stock
SKU
00-426225-00001
Manufacturer:
The Hobart 00-426225-00001 Ignition Control Module F429 CA-146 manages the combustion process by receiving electrical input and coordinating burner startup in a commercial fryer. It is used to control the ignition sequence, to receive operating signals, and to control the power flow that is needed to activate the burner. This 24V module is mounted in the electrical control portion of the fryer and is part of the heating system's ignition and gas control. The module monitors and controls the ignition and burner communication, which is essential for the operation of the fryer to attain the required cooking temperature.
Dimensions
- Length: 5.5 In
- Width: 4 In
- Height: 2 In
- Weight: 0.75 lbs
Product Notes
- Ignition Control Module 24V, F429, Ca-145, # 441283
- S8600H3002,
- 1 Mv, 2 Mv/Pv, 3 Pv,
- 4 Gnd(Burner), 5 24V(Gnd), 6 24V, 9 Spark, 90 Sec
- New/Style Black Box W/ Spark Connection On Top
- Groen Kettle, Marshall Air Broiler.
- For Vulcan Hart:
- Nat/Lp Pilot, H501, # 51-1467
- Ignition Cable, Vul419359 (Non-Stock)
- Vulcan Model 1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45,
- 1Grc65,1Grd45, 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4,
- Ef5, G40Tb, Gr35,Gr35F, Gr45, Gr45F, Gr65, Gr65F, Gr85,
- Gr85F, Grc35F,Grc45F, Grc65F, Grc85F, Grd35F, Grd45F,
- Grd65F, Grd85F,Grs35F, Grs45F, Grs65F, Grs85F
