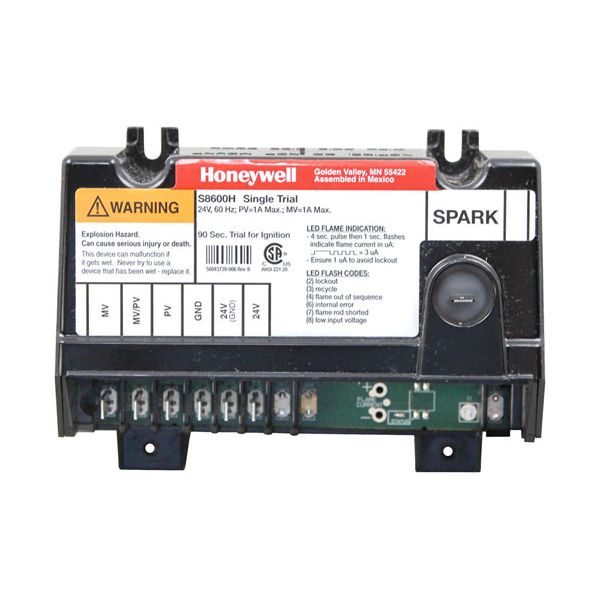

Hobart 426225-00001 Fryer Ignition Control Module 24V F429 CA-152
Special Price $197.79 Regular Price $387.03
In stock
SKU
426225-00001
Manufacturer:
The Hobart 426225-00001 Ignition Control Module F429 CA-152 manages the refueling sequence by processing electrical signals and coordinating burner startup within a commercial fryer. It tracks operating inputs, manages ignition timing, and provides communication with other connected parts to assist in heat generation. This 24V module is mounted in the electrical control panel of the fryer and works with the ignition assemblies and the gas control systems. The module is a part of the fryer's control system and supports coordinating the operations connected with the ignition of the burners needed to start the cooking and keep the temperature in the fryer.
Dimensions
- Length: 5.5 In
- Width: 4 In
- Height: 2 In
- Weight: 0.75 lbs
Product Notes
- Ignition Control Module 24V, F429, Ca-145, # 441283
- S8600H3002,
- 1 Mv, 2 Mv/Pv, 3 Pv,
- 4 Gnd(Burner), 5 24V(Gnd), 6 24V, 9 Spark, 90 Sec
- New/Style Black Box W/ Spark Connection On Top
- Groen Kettle, Marshall Air Broiler.
- For Vulcan Hart:
- Nat/Lp Pilot, H501, # 51-1467
- Ignition Cable, Vul419359 (Non-Stock)
- Vulcan Model 1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45,
- 1Grc65,1Grd45, 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4,
- Ef5, G40Tb, Gr35,Gr35F, Gr45, Gr45F, Gr65, Gr65F, Gr85,
- Gr85F, Grc35F,Grc45F, Grc65F, Grc85F, Grd35F, Grd45F,
- Grd65F, Grd85F,Grs35F, Grs45F, Grs65F, Grs85F
