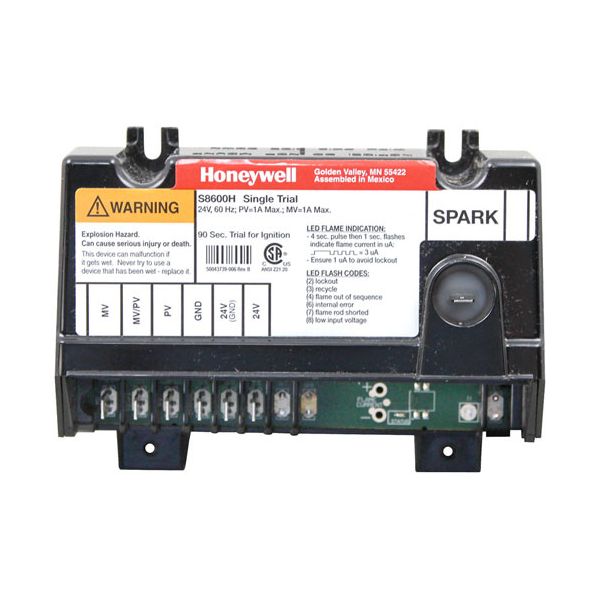

Groen GR085153 Fryer Ignition Control Module 24V F429 CA-159
Special Price $197.79 Regular Price $387.03
In stock
SKU
GR085153
Manufacturer:
The Groen GR085153 Ignition Control Module F429 CA-159 is a sequence of processes that are required to start and monitor fryer burners. It works by accepting data from the connected parts and transmitting electrical signals to start the ignition and to check for the presence of the flame. This module is designed for 24-volt systems, and it is installed in commercial fryer control assemblies. It is connected to ignition, safety, and burner controls to control heating operations. The module is integrated into the electrical system of the fryer and is used to communicate with the other parts of the electrical system.
Dimensions
- Length: 5.5 In
- Width: 4 In
- Height: 2 In
- Weight: 0.75 lbs
Product Notes
- Ignition Control Module 24V, F429, Ca-145, # 441283
- S8600H3002,
- 1 Mv, 2 Mv/Pv, 3 Pv,
- 4 Gnd(Burner), 5 24V(Gnd), 6 24V, 9 Spark, 90 Sec
- New/Style Black Box W/ Spark Connection On Top
- Groen Kettle, Marshall Air Broiler.
- For Vulcan Hart:
- Nat/Lp Pilot, H501, # 51-1467
- Ignition Cable, Vul419359 (Non-Stock)
- Vulcan Model 1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45,
- 1Grc65,1Grd45, 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4,
- Ef5, G40Tb, Gr35,Gr35F, Gr45, Gr45F, Gr65, Gr65F, Gr85,
- Gr85F, Grc35F,Grc45F, Grc65F, Grc85F, Grd35F, Grd45F,
- Grd65F, Grd85F,Grs35F, Grs45F, Grs65F, Grs85F
