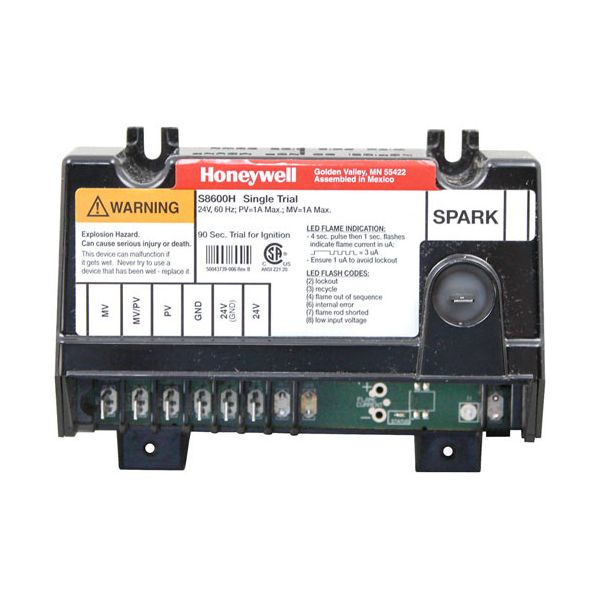

Hobart 821078 Fryer Ignition Control Module 24V F429 CA-155
Special Price $197.79 Regular Price $387.03
In stock
SKU
821078
Manufacturer:
The Hobart 821078 Fryer Ignition Control Module 24V F429 CA-155 receives the operating signals and triggers the sequence of lighting the burner, which manages the flow of electrical commands within the combustion system. It checks the ignition conditions and synchronizes with the electrical components that are connected to it to control each ignition cycle before the normal heating starts. The module is installed within the fryer control housing and connected in the ignition and burner control circuits. It is designed for use in 24-volt fryer systems, which are compatible, and a component of the electrical unit needed to provide ignition operation.
Dimensions
- Length: 5.5 In
- Width: 4 In
- Height: 2 In
- Weight: 0.75 lbs
Product Notes
- Ignition Control Module 24V, F429, Ca-145, # 441283
- S8600H3002,
- 1 Mv, 2 Mv/Pv, 3 Pv,
- 4 Gnd(Burner), 5 24V(Gnd), 6 24V, 9 Spark, 90 Sec
- New/Style Black Box W/ Spark Connection On Top
- Groen Kettle, Marshall Air Broiler.
- For Vulcan Hart:
- Nat/Lp Pilot, H501, # 51-1467
- Ignition Cable, Vul419359 (Non-Stock)
- Vulcan Model 1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45,
- 1Grc65,1Grd45, 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4,
- Ef5, G40Tb, Gr35,Gr35F, Gr45, Gr45F, Gr65, Gr65F, Gr85,
- Gr85F, Grc35F,Grc45F, Grc65F, Grc85F, Grd35F, Grd45F,
- Grd65F, Grd85F,Grs35F, Grs45F, Grs65F, Grs85F
