Southbend 1174813 Fryer Ignition Control Module 24V F429 CA-148
Special Price $197.79 Regular Price $387.03
In stock
SKU
1174813
Manufacturer:

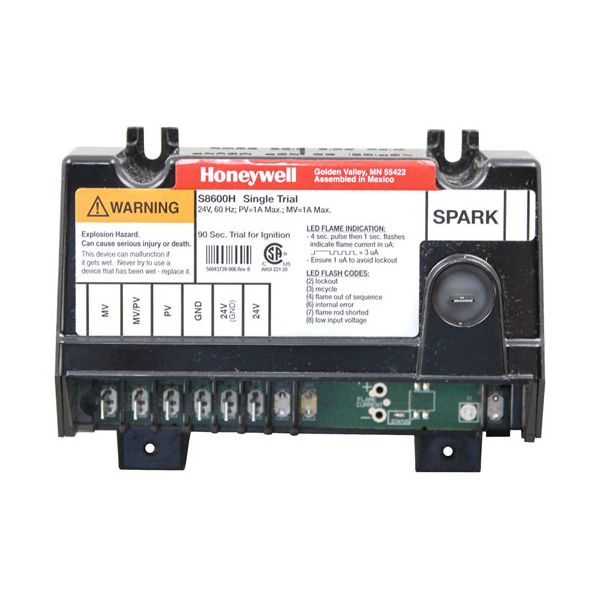

The Southbend 1174813 Ignition Control Module 24V F429 CA-148 regulates the firing sequence by controlling electrical communication between the fryer’s operating controls and burner system. It is used to receive input signals, trigger ignition operations, and track the process for burner activation. This is part of the assembly of the fryer and is wired to ignition and gas management systems that are used to heat the fryer. This is connected to the fryer's control network to coordinate the start-up procedures and burner operation to ensure that cooking oil is able to reach and maintain the required temperature during food preparation.
Dimensions
- Length: 5.5 In
- Width: 4 In
- Height: 2 In
- Weight: 0.75 lbs
Product Notes
- Ignition Control Module 24V, F429, Ca-145, # 441283
- S8600H3002,
- 1 Mv, 2 Mv/Pv, 3 Pv,
- 4 Gnd(Burner), 5 24V(Gnd), 6 24V, 9 Spark, 90 Sec
- New/Style Black Box W/ Spark Connection On Top
- Groen Kettle, Marshall Air Broiler.
- For Vulcan Hart:
- Nat/Lp Pilot, H501, # 51-1467
- Ignition Cable, Vul419359 (Non-Stock)
- Vulcan Model 1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45,
- 1Grc65,1Grd45, 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4,
- Ef5, G40Tb, Gr35,Gr35F, Gr45, Gr45F, Gr65, Gr65F, Gr85,
- Gr85F, Grc35F,Grc45F, Grc65F, Grc85F, Grd35F, Grd45F,
- Grd65F, Grd85F,Grs35F, Grs45F, Grs65F, Grs85F
