Montague 02038-9 Air Shutter Burner Twin Plate 2 Slots
Special Price $8.72 Regular Price $9.33
In stock
SKU
02038-9
Manufacturer:

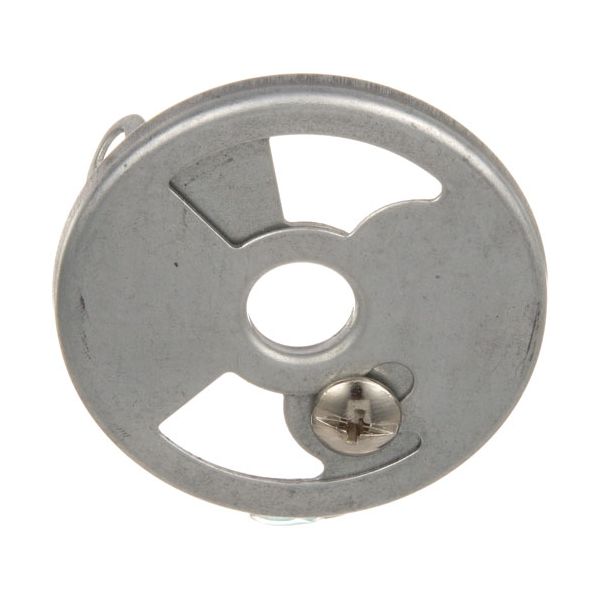

The Montague 02038-9 Air Shutter Burner Twin Plates are air shutters that can be adjusted to control the flow of gas and balance the fuel and the air to form a controlled flame between two burner plates. The two-slot design directs the combustion in a balanced way since gas ignites and the heat spreads throughout the surface. It is placed under compatible cooking systems that are installed in the burner compartment of commercial ranges or hot plates. The burner is made of two plates and an air shutter system, which allows the burner to run continuously with constant operation.
Dimensions
- Length: 0.806 In
- Width: 0.806 In
- Height: 0.124 In
- Weight: 0.146 lbs
Product Notes
- Air Shutter, Twin Plate, 2 Slots, .463" Orifice Hole, Fits
- 2.092" Dia Burner, W/ Locking Ears, 2-1/4"Od Air Shutter
- For Cast Iron Burner.
- Magikitch'N Charbroiler Series Dmc, Fm-Smb, Smb, Smb-Apm
- Montague Broiler Ufc, Ufsc, Ufscc, Ufsmc (24 To 72, >10/91
- Grill 2436, 2436T, 2472, 2472T, Grizzly G.
- Range 136-5, 136-559~
- Series:
- Vulcan
- Broiler Hcb1 (Old Cb-1L), Hcb2 (Old Cb-2L), Hcb44
- (Old7844L), Hcbo40 (Old 7840Al), M7806, M7809, Series: Hgb.
- Range 7830.
- Wolf Oven
