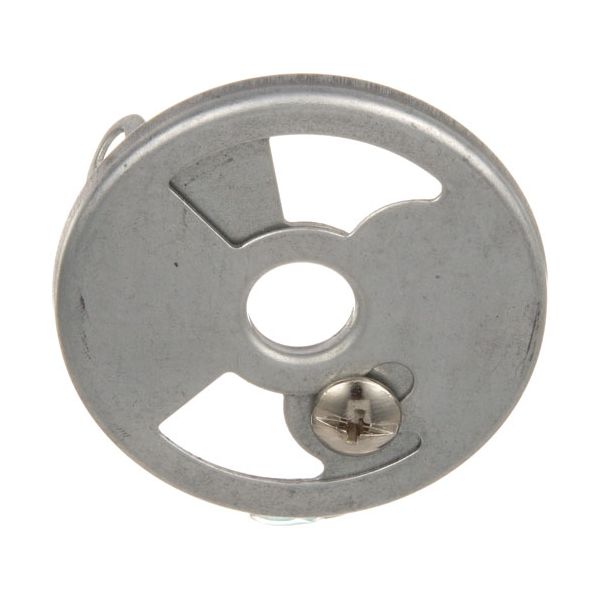

Vulcan Hart 806470 Air Shutter Twin Plate 2 Slots
Special Price $8.72 Regular Price $9.33
In stock
SKU
806470
Manufacturer:
The Vulcan Hart 806470 Air Shutter Twin Plate 2 Slots is an air flow control system that can adjust the ratio of air and gas and permits flames to combust effectively in two slots. The plates of the shutter operate separately to control combustion to make sure that there is an even spread and uniform pattern of the flames. It is designed to be installed in commercial cooking equipment, directly over burners to control the amount of air entering the equipment to ensure that the flame characteristics are maintained correctly.
Dimensions
- Length: 0.806 In
- Width: 0.806 In
- Height: 0.124 In
- Weight: 0.146 lbs
Product Notes
- Air Shutter, Twin Plate, 2 Slots, .463" Orifice Hole, Fits
- 2.092" Dia Burner, W/ Locking Ears, 2-1/4"Od Air Shutter
- For Cast Iron Burner.
- Magikitch'N Charbroiler Series Dmc, Fm-Smb, Smb, Smb-Apm
- Montague Broiler Ufc, Ufsc, Ufscc, Ufsmc (24 To 72, >10/91
- Grill 2436, 2436T, 2472, 2472T, Grizzly G.
- Range 136-5, 136-559~
- Series:
- Vulcan
- Broiler Hcb1 (Old Cb-1L), Hcb2 (Old Cb-2L), Hcb44
- (Old7844L), Hcbo40 (Old 7840Al), M7806, M7809, Series: Hgb.
- Range 7830.
- Wolf Oven
