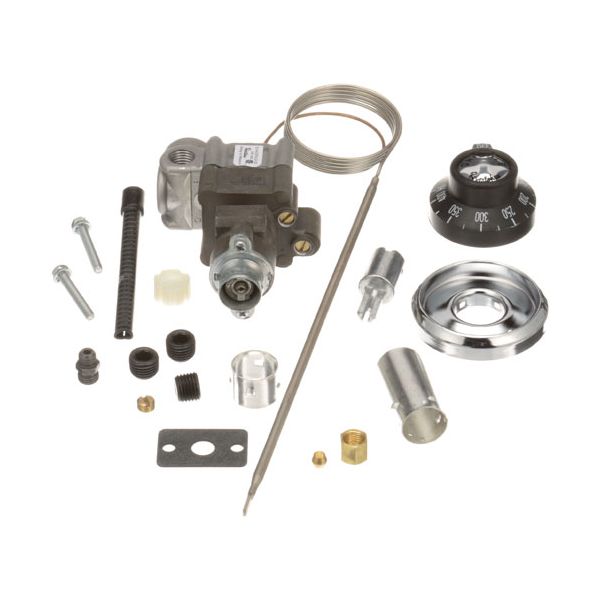

Hobart 13523 Thermostat W/Dial 150°F-400°F 3/16" X 11-5/8" Bulb 48" CAP BJWA
Special Price $180.10 Regular Price $277.50
In stock
SKU
13523
Manufacturer:
The Hobart 13523 Thermostat With Dial BJWA measures the temperature inside the equipment through its 3/16-inch by 11-5/8-inch sensing bulb, while the 48-inch capillary tube transmits temperature changes to the thermostat mechanism. The control dial provides an adjustable range from 150°F to 400°F, allowing the heating circuit to cycle on and off as the selected temperature is maintained. This thermostat is installed behind the control panel of compatible commercial cooking equipment, with the sensing bulb positioned in the heated cavity to monitor operating temperatures throughout the cooking process.
Dimensions
- Length: 14 In
- Width: 4.5 In
- Height: 3.5 In
- Weight: 1.1 lbs
Product Notes
- Viewed From Rear: See "Bj Outlet Positions"
- W/ By-Pass Adj At Top & Gas Inlet Down
- [ Bjwa Kit ] [ Temp 150-400 ] [ Bulb 3/16" X 8" ]
- [ Cap 36" ][ Out 1/4" Fpt "A,B.C,D,"] [Rotation 0 Degrees ]
- [Includes Dial & Bezel, Stem Adaptors, Gasket, Screws.
- Dial = # 22-1036 Off-Lo-150-400-Hi ]
- Wolf Griddle Dial # 22-1251 Off-Lo-150-400-Hi
- Dynamic Cooking Systems Griddle
- Cecilware Grill Before 1/86: Ag-(24,36,48).
- Franklin Chef Grill Gh(33T,33T-7,43T,43T-7), Ghm(33T,43T).
- Jade Series: Jsr
- Montague Griddle
- Southbend Griddle Series Sg
