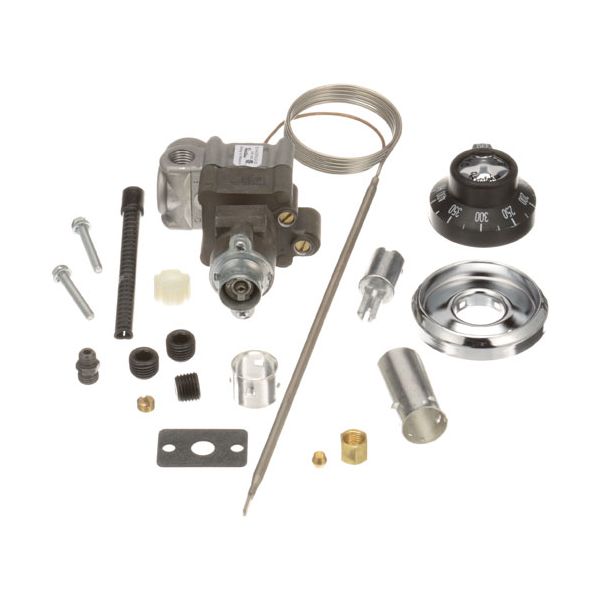

Hobart 802116-00001 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP 150°F-400°F BJWA
Special Price $180.10 Regular Price $277.50
In stock
SKU
802116-00001
Manufacturer:
The Hobart 802116-00001 Thermostat W/Dial 3/16" X 11-5/8" X 48" Cap 150°F-400°F BJWA controls thermal output by detecting temperature changes through its bulb-and-capillary system and activating internal contacts accordingly. When the sensed temperature differs from the selected dial setting it connects heating elements to stabilize internal conditions. This action supports regulated cooking performance across operational cycles. It is mounted in a commercial system, with the sensing bulb placed in the heated zone and the dial assembly accessible for temperature selection.
Dimensions
- Length: 14 In
- Width: 4.5 In
- Height: 3.5 In
- Weight: 1.1 lbs
Product Notes
- Viewed From Rear: See "Bj Outlet Positions"
- W/ By-Pass Adj At Top & Gas Inlet Down
- [ Bjwa Kit ] [ Temp 150-400 ] [ Bulb 3/16" X 8" ]
- [ Cap 36" ][ Out 1/4" Fpt "A,B.C,D,"] [Rotation 0 Degrees ]
- [Includes Dial & Bezel, Stem Adaptors, Gasket, Screws.
- Dial = # 22-1036 Off-Lo-150-400-Hi ]
- Wolf Griddle Dial # 22-1251 Off-Lo-150-400-Hi
- Dynamic Cooking Systems Griddle
- Cecilware Grill Before 1/86: Ag-(24,36,48).
- Franklin Chef Grill Gh(33T,33T-7,43T,43T-7), Ghm(33T,43T).
- Jade Series: Jsr
- Montague Griddle
- Southbend Griddle Series Sg
