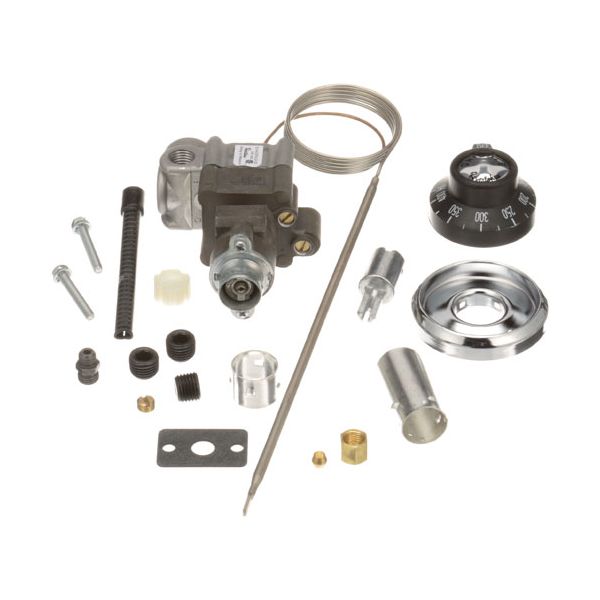

Star Mfg WS-59281 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP 150°F-400°F BJWA
Special Price $180.10 Regular Price $277.50
In stock
SKU
WS-59281
Manufacturer:
The Star Mfg WS-59281 Thermostat With Dial 3/16" X 11-5/8" X 48" CAP 150°F-400°F BJWA regulates temperature by sensing heat through a remote bulb connected via capillary tubing and converting those readings into, switching actions. As internal temperature rises or falls the thermostat responds by opening or closing electrical contacts to control power supplied to heating elements based on the selected dial setting. This process maintains consistent operating conditions during cooking cycles. The unit is installed in compatible commercial cooking equipment, with the sensing bulb positioned inside the heated chamber and the dial mounted externally for adjustment during operation.
Dimensions
- Length: 14 In
- Width: 4.5 In
- Height: 3.5 In
- Weight: 1.1 lbs
Product Notes
- Viewed From Rear: See "Bj Outlet Positions"
- W/ By-Pass Adj At Top & Gas Inlet Down
- [ Bjwa Kit ] [ Temp 150-400 ] [ Bulb 3/16" X 8" ]
- [ Cap 36" ][ Out 1/4" Fpt "A,B.C,D,"] [Rotation 0 Degrees ]
- [Includes Dial & Bezel, Stem Adaptors, Gasket, Screws.
- Dial = # 22-1036 Off-Lo-150-400-Hi ]
- Wolf Griddle Dial # 22-1251 Off-Lo-150-400-Hi
- Dynamic Cooking Systems Griddle
- Cecilware Grill Before 1/86: Ag-(24,36,48).
- Franklin Chef Grill Gh(33T,33T-7,43T,43T-7), Ghm(33T,43T).
- Jade Series: Jsr
- Montague Griddle
- Southbend Griddle Series Sg
