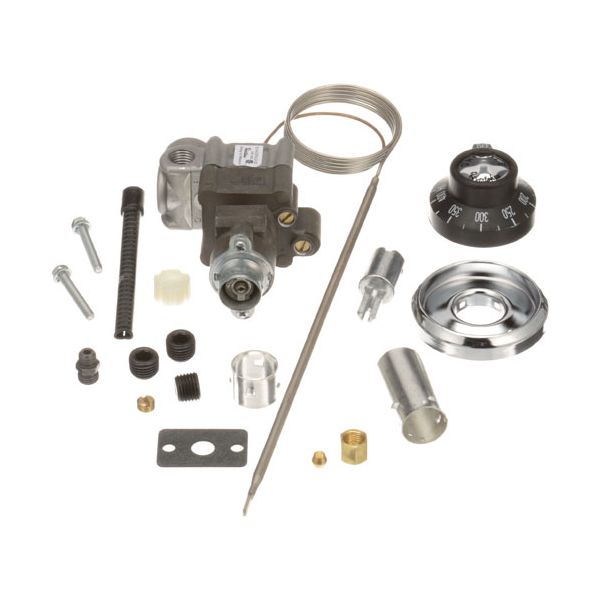

Cecilware L032F Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP 150°F-400°F BJWA
Special Price $180.10 Regular Price $277.50
In stock
SKU
L032F
Manufacturer:
The Cecilware L032F Thermostat W/Dial 3/16" X 11-5/8" X 48" Cap 150°F-400°F BJWA operates through a temperature-sensing mechanism that detects heat variations using a bulb and capillary assembly. These signals are transmitted to the thermostat body, which adjusts internal switching to control heating element activity. Based on the dial setting, the thermostat cycles power on or off to maintain the intended temperature range. It is installed in commercial cooking equipment, with the sensing bulb placed inside the heated zone and the control dial mounted externally for temperature regulation.
Dimensions
- Length: 14 In
- Width: 4.5 In
- Height: 3.5 In
- Weight: 1.1 lbs
Product Notes
- Viewed From Rear: See "Bj Outlet Positions"
- W/ By-Pass Adj At Top & Gas Inlet Down
- [ Bjwa Kit ] [ Temp 150-400 ] [ Bulb 3/16" X 8" ]
- [ Cap 36" ][ Out 1/4" Fpt "A,B.C,D,"] [Rotation 0 Degrees ]
- [Includes Dial & Bezel, Stem Adaptors, Gasket, Screws.
- Dial = # 22-1036 Off-Lo-150-400-Hi ]
- Wolf Griddle Dial # 22-1251 Off-Lo-150-400-Hi
- Dynamic Cooking Systems Griddle
- Cecilware Grill Before 1/86: Ag-(24,36,48).
- Franklin Chef Grill Gh(33T,33T-7,43T,43T-7), Ghm(33T,43T).
- Jade Series: Jsr
- Montague Griddle
- Southbend Griddle Series Sg
