Hobart 713523 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP 150°F-400°F BJWA
Special Price $180.10 Regular Price $277.50
In stock
SKU
713523
Manufacturer:

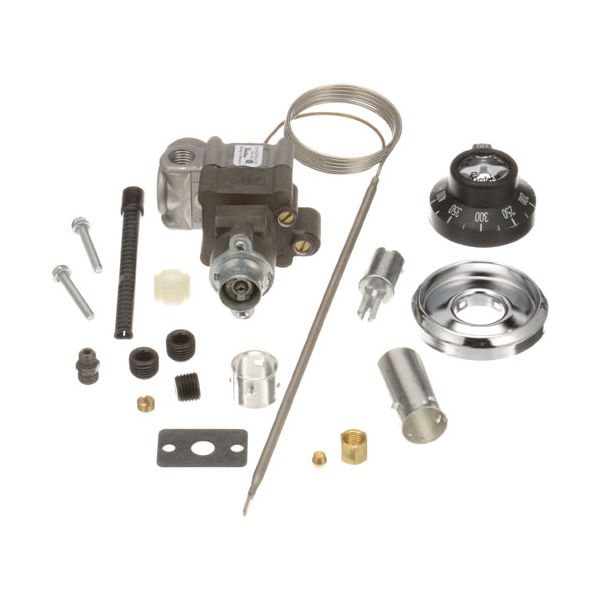

The Hobart 713523 Thermostat W/Dial 3/16" X 11-5/8" X 48" Cap 150°F-400°F BJWA manages temperature control by sensing thermal changes through a remote bulb connected via capillary tubing. These temperature readings are transmitted to the thermostat mechanism, which adjusts electrical contact states to regulate heating parts in response to set dial values. This cycling action supports controlled heat distribution during system operation. It is installed in commercial cooking equipment, with the sensing element positioned in the heated zone and the dial assembly mounted for user access and adjustment.
Dimensions
- Length: 14 In
- Width: 4.5 In
- Height: 3.5 In
- Weight: 1.1 lbs
Product Notes
- Viewed From Rear: See "Bj Outlet Positions"
- W/ By-Pass Adj At Top & Gas Inlet Down
- [ Bjwa Kit ] [ Temp 150-400 ] [ Bulb 3/16" X 8" ]
- [ Cap 36" ][ Out 1/4" Fpt "A,B.C,D,"] [Rotation 0 Degrees ]
- [Includes Dial & Bezel, Stem Adaptors, Gasket, Screws.
- Dial = # 22-1036 Off-Lo-150-400-Hi ]
- Wolf Griddle Dial # 22-1251 Off-Lo-150-400-Hi
- Dynamic Cooking Systems Griddle
- Cecilware Grill Before 1/86: Ag-(24,36,48).
- Franklin Chef Grill Gh(33T,33T-7,43T,43T-7), Ghm(33T,43T).
- Jade Series: Jsr
- Montague Griddle
- Southbend Griddle Series Sg
