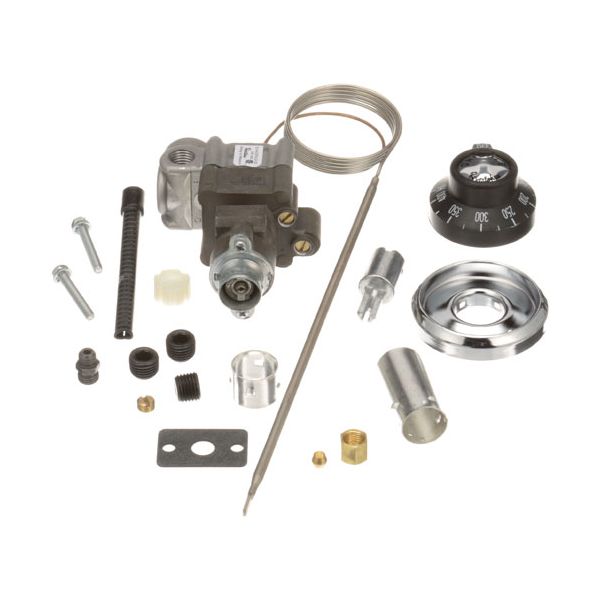

Hobart 418573-000G1 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP 150°F-400°F BJWA
Special Price $180.10 Regular Price $277.50
In stock
SKU
418573-000G1
Manufacturer:
The Hobart 418573-000G1 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP 150°F-400°F BJWA regulates heat by sensing temperature through its capillary bulb and converting thermal changes into mechanical switching action. As the detected temperature rises or falls, the internal contacts respond according to the selected dial setting, controlling the energizing and de-energizing of connected heating circuits. This operation supports consistent temperature control throughout cooking cycles. The thermostat is installed in compatible commercial cooking equipment, with the sensing element placed in the heated chamber and the dial mounted on the control panel for adjustment during operation.
Dimensions
- Length: 14 In
- Width: 4.5 In
- Height: 3.5 In
- Weight: 1.1 lbs
Product Notes
- Viewed From Rear: See "Bj Outlet Positions"
- W/ By-Pass Adj At Top & Gas Inlet Down
- [ Bjwa Kit ] [ Temp 150-400 ] [ Bulb 3/16" X 8" ]
- [ Cap 36" ][ Out 1/4" Fpt "A,B.C,D,"] [Rotation 0 Degrees ]
- [Includes Dial & Bezel, Stem Adaptors, Gasket, Screws.
- Dial = # 22-1036 Off-Lo-150-400-Hi ]
- Wolf Griddle Dial # 22-1251 Off-Lo-150-400-Hi
- Dynamic Cooking Systems Griddle
- Cecilware Grill Before 1/86: Ag-(24,36,48).
- Franklin Chef Grill Gh(33T,33T-7,43T,43T-7), Ghm(33T,43T).
- Jade Series: Jsr
- Montague Griddle
- Southbend Griddle Series Sg
