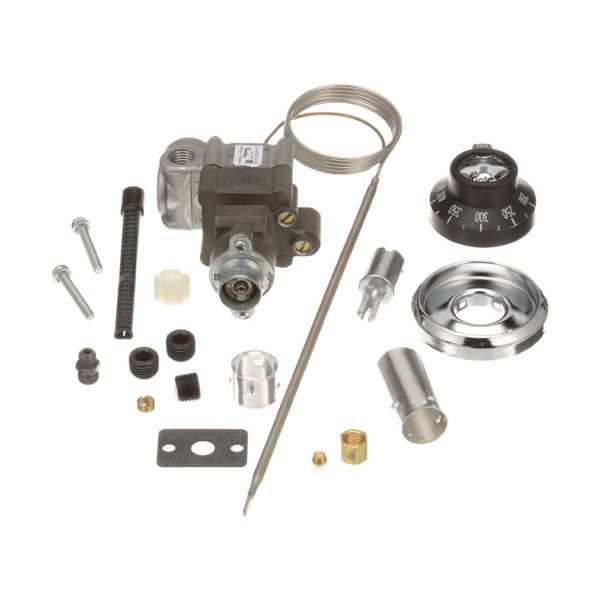

main product photo

Montague 3384-7 Thermostat W/ Dial BJWA 3/16 X 8 Capilary 36" 150-400F

Be the first to review this product
Special Price $180.10 Regular Price $277.50
In stock
SKU
3384-7
Add to Wish List
Oven Parts, Oven Thermostats,
Manufacturer:
The Montague 3384-7 Range Thermostat W/Dial BJWA 3/16 X 8" Capillary 36" used to control the amount of heat in the cooking area by detecting the temperature change in the capillary tube and bulb. It operates by modifying the internal control system as the dial is rotated to make the burner vary its output to the desired temperature. This thermostat is installed in the control panel of the range and the sensing bulb is located close to the source of heat to directly measure the temperature.

Dimensions

  • Length: 14 In
  • Width: 4.5 In
  • Height: 3.5 In
  • Weight: 1.1 lbs
https://partsfe.com/media/catalog/product/m/o/montague-3384-7-thermostat-w-dial-bjwa-3-16-x-8-cap-36-150-400f.jpg

Product Notes

  • Viewed From Rear: See "Bj Outlet Positions"
  • W/ By-Pass Adj At Top & Gas Inlet Down
  • [ Bjwa Kit ] [ Temp 150-400 ] [ Bulb 3/16" X 8" ]
  • [ Cap 36" ][ Out 1/4" Fpt "A,B.C,D,"] [Rotation 0 Degrees ]
  • [Includes Dial & Bezel, Stem Adaptors, Gasket, Screws.
  • Dial = # 22-1036 Off-Lo-150-400-Hi ]
  • Wolf Griddle Dial # 22-1251 Off-Lo-150-400-Hi
  • Dynamic Cooking Systems Griddle
  • Cecilware Grill Before 1/86: Ag-(24,36,48).
  • Franklin Chef Grill Gh(33T,33T-7,43T,43T-7), Ghm(33T,43T).
  • Jade Series: Jsr
  • Montague Griddle
  • Southbend Griddle Series Sg
BLOOMFIELD:
DYNAMIC COOKING SYSTEMS:
55764-03, DCS55764-03
GARLAND:
GRINDMASTER:
MONTAGUE:
STERO:
STA2T-Y7159, STA2T-Z4293, STA9493, STAY7159, STAZ4293
U-LINE:
4350-028, 4350-037
Reviews
Write Your Own Review
You're reviewing:Montague 3384-7 Thermostat W/ Dial BJWA 3/16 X 8 Capilary 36" 150-400F
Your Rating
FAQS
Customer Questions
What maintenance is required for the Montague 3384-7 Thermostat With Dial?

Inspect the capillary tube and sensing bulb regularly for kinks, leaks, or corrosion. Keep the dial clean and free from grease buildup. Calibrate periodically to ensure accurate temperature control. Avoid physical impact and ensure secure mounting for safe operation.

What are common issues with the Montague 3384-7 Thermostat With Dial?

  • Inaccurate temperature readings due to calibration drift.
  • Capillary tube damage or leakage causes failure.
  • Dial sticking or hard adjustment.
  • Delayed response or inconsistent heating control.
  • Sensor wear or faulty sensing bulb leading to unstable regulation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect gas and electrical power to the equipment and allow components to cool fully.

Step2: Remove the control panel to access the thermostat assembly and capillary system.

Step3: Carefully disconnect wiring and gas connections, marking positions for correct reconnection.

Step4: Remove the old thermostat bulb from the sensing bracket and withdraw the capillary tube.

Step5: Install the new thermostat, positioning the bulb securely in the sensing area.

Step6: Reconnect all fittings, secure the dial assembly, restore power, and test temperature control for safe operation.
