Star Mfg WS-59282 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP 150°F-400°F BJWA
Special Price $180.10 Regular Price $277.50
In stock
SKU
WS-59282
Manufacturer:
The Star Mfg WS-59282 Thermostat With Dial 3/16" X 11-5/8" X 48" CAP 150°F-400°F BJWA operates by monitoring internal appliance temperature through a capillary bulb system and adjusting electrical flow to heating circuits based on detected changes. When the sensed temperature deviates from the selected dial value, the thermostat cycles connected heating parts on or off to stabilize heat levels. This mechanism supports controlled temperature regulation throughout operation. The part is installed in compatible equipment, with the sensing bulb placed in the cooking zone and the control dial accessible on the exterior panel.
Dimensions
- Length: 14 In
- Width: 4.5 In
- Height: 3.5 In
- Weight: 1.1 lbs
Product Notes
- Viewed From Rear: See "Bj Outlet Positions"
- W/ By-Pass Adj At Top & Gas Inlet Down
- [ Bjwa Kit ] [ Temp 150-400 ] [ Bulb 3/16" X 8" ]
- [ Cap 36" ][ Out 1/4" Fpt "A,B.C,D,"] [Rotation 0 Degrees ]

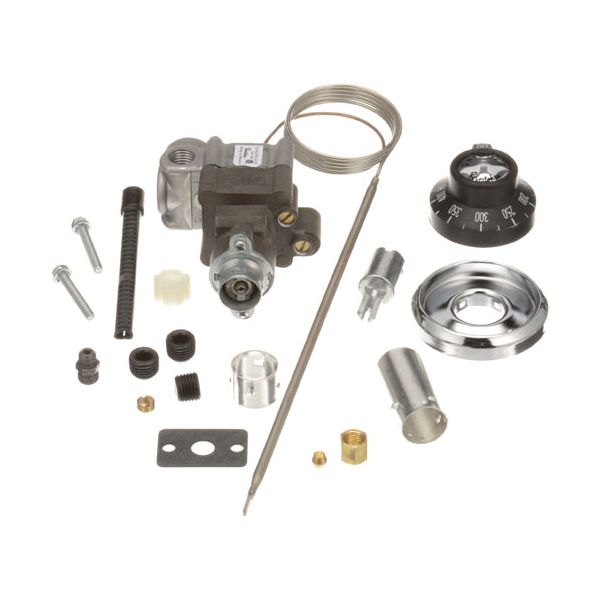

- [Includes Dial & Bezel, Stem Adaptors, Gasket, Screws.
- Dial = # 22-1036 Off-Lo-150-400-Hi ]
- Wolf Griddle Dial # 22-1251 Off-Lo-150-400-Hi
- Dynamic Cooking Systems Griddle
- Cecilware Grill Before 1/86: Ag-(24,36,48).
- Franklin Chef Grill Gh(33T,33T-7,43T,43T-7), Ghm(33T,43T).
- Jade Series: Jsr
- Montague Griddle
- Southbend Griddle Series Sg
