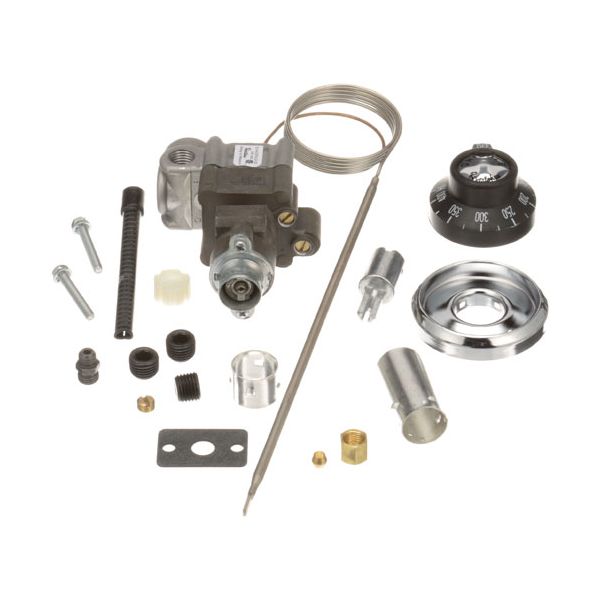

Montague B-36 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP 150°F-400°F BJWA
Special Price $180.10 Regular Price $277.50
In stock
SKU
B-36
Manufacturer:
The Montague B-36 Thermostat W/Dial 3/16" X 11-5/8" X 48" Cap 150F-400F BJWA regulates heat by sensing temperature changes through a remote bulb connected to a capillary tube and converting those changes into electrical switching action. As the temperature rises or falls within the cooking chamber, the internal mechanism cycles connected heating elements on or off based on the selected dial setting. This control process maintains steady heat levels during operation. It is installed in commercial cooking equipment, with the sensing bulb placed inside the heated zone and the dial positioned on the control panel for adjustment.
Dimensions
- Length: 14 In
- Width: 4.5 In
- Height: 3.5 In
- Weight: 1.1 lbs
Product Notes
- Viewed From Rear: See "Bj Outlet Positions"
- W/ By-Pass Adj At Top & Gas Inlet Down
- [ Bjwa Kit ] [ Temp 150-400 ] [ Bulb 3/16" X 8" ]
- [ Cap 36" ][ Out 1/4" Fpt "A,B.C,D,"] [Rotation 0 Degrees ]
- [Includes Dial & Bezel, Stem Adaptors, Gasket, Screws.
- Dial = # 22-1036 Off-Lo-150-400-Hi ]
- Wolf Griddle Dial # 22-1251 Off-Lo-150-400-Hi
- Dynamic Cooking Systems Griddle
- Cecilware Grill Before 1/86: Ag-(24,36,48).
- Franklin Chef Grill Gh(33T,33T-7,43T,43T-7), Ghm(33T,43T).
- Jade Series: Jsr
- Montague Griddle
- Southbend Griddle Series Sg
