Crown Steam 116-4804 Stationary Kettle Safety Control Valve NG 1/2" FPT IN X 3/4" FPT Out 120V
Special Price $216.60 Regular Price $333.75
In stock
SKU
116-4804
Manufacturer:

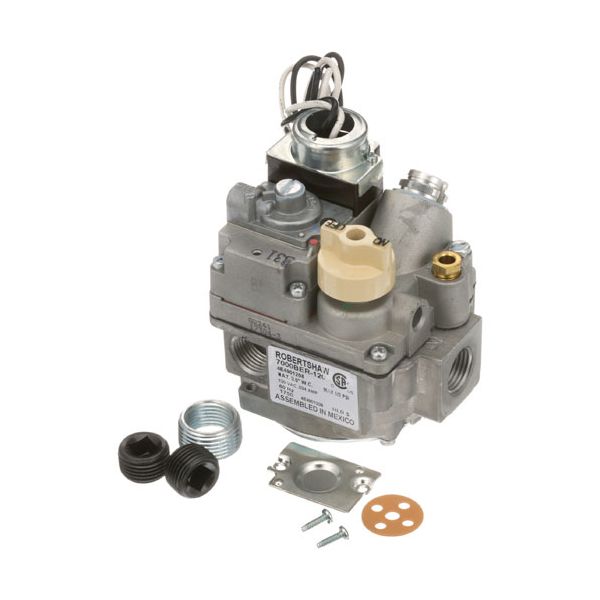

The Crown Steam 116-4804 Stationary Kettle Safety Control Valve NG 1/2" FPT IN X 3/4" FPT Out 120V manages flow by interacting with the pilot assembly to regulate fuel circulation to the system. It uses input from the thermocouple to maintain the gas pathway during active operation and interrupts the supply when the pilot flame is no longer detected. The side outlet design distributes gas to designated internal channels connected to the burner system. It is installed in equipment, where it operates within the gas control assembly during ignition, heating, and shutdown procedures.
Dimensions
- Length: 5.75 In
- Width: 4.75 In
- Height: 3.5 In
- Weight: 2.85 lbs
Product Notes
- Nat Gas Safety, 1/2" Fpt In, 3/4" & 1/2" Out. W/ (2) 1/2"
- Side Outs W/ Plugs, 3/4" X 1/2" Reducer Bushings,
- 1/4" Cct Pilot Out, Uses Thermocouple.
- For Nat To Lp Gas Conversion Kit Use # 51-1470
- Model 7000 Ber-120, 120 Vac Actuator, Mfg# 700-452
- Dean Fryer 1824/2424G, 1824G, 2424G, D20, D50,
- D50G, D50Gdd, D60, D60Gs, D80, Fpd65, Fphd65, Tb14
- Henny Penny Fryer 600, Og- 301,302,303
- Market Forge Oven 2500, 2700
- Gas Tilt Skillet 1500 1700,
- Southbend Kettle Kslg W/Standing Pilot. Oven X,Xs
- Vulcan Tilt Skillets Model E-30-C, E-30-O, E-40-C, E-40-O,
- G-30-C,G-30-O, G-40-C, G-40-O
