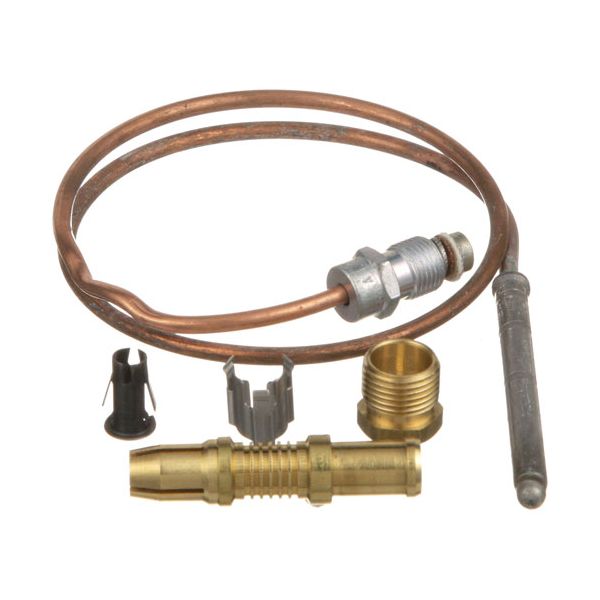

Jade Range 4620100000 Convection Oven Thermocouple 18" 20-30mV 1980 Series

Be the first to review this product
Special Price $45.61 Regular Price $72.41
In stock
SKU
4620100000
Add to Wish List
Fryer Parts, Fryer Thermocouples,
Manufacturer:
The Jade Range 4620100000 Convection Oven Thermocouple 18 inch 20-30 mV 1980 Series produces a low-voltage electrical signal when the sensing tip is hot which is detected by the oven to ensure the presence of flames. It reaches the combustion area. This thermocouple is mounted in the burner chamber, and the sensing end is placed in the flame path with the lead being connected to the gas valve or control board. It is used as a flame detector in the safety system of the oven.

Dimensions

  • Length: 5 In
  • Width: 4 In
  • Height: 0.5 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/j/a/jade-range-4620100000-1980-series-thermocouple-18-20-30mv-30058-2.jpg

Product Notes

  • 1980 Series Snap Fit 18" Thermocouple, 20-30 Mv
  • American Permanent Ware Griddle Ggm, Ggt
  • Comstock Castle Oven Bake, Barbeque & Pizza Ovens.
  • Series: C, D, F, K.
  • Dynamic Cooking Systems Oven All
  • Garland Broiler 6-40/50S, 7-40/50S, 8-40/50S, 60-40/50R
  • Oven Series: H281, P280. Standard Oven From 03/99 In
  • Canada Only, Range: G20-Sph
  • Imperial Model?
  • Star Fryer M14, Mi4 (D,Dl), M18, Mi8(D,Dl), M43, 215B, 216,
  • 403 404
  • Us Range Oven P-4-20.
  • Wolf Oven Ch, Chssd, R
AMERICAN RANGE:
10485, A11100, AMRA11100
ANETS:
ANEP8900-32, P8900-32
APW WYOTT:
CECILWARE:
COMSTOCK CASTLE:
DYNAMIC COOKING SYSTEMS:
IMPERIAL:
1121, 30030, IMP1121
ROYAL RANGE:
STAR MFG:
STERO:
STA2J-6726, STA2J6726, STA6726, STAH456
TRI-STAR:
310210, TRS310210
U-LINE:
1980-018
Reviews
Write Your Own Review
You're reviewing:Jade Range 4620100000 Convection Oven Thermocouple 18" 20-30mV 1980 Series
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jade Range 4620100000 Thermocouple?

Inspect the thermocouple regularly for soot, corrosion, or physical damage. Clean the sensing tip to ensure accurate flame detection and stable voltage output. Confirm proper positioning in the pilot flame. Always shut off gas before handling to avoid leaks or accidental ignition.

What are common issues with the Jade Range 4620100000 Thermocouple?

  • Pilot flame not staying lit consistently.
  • Low or fluctuating millivolt output.
  • Improper flame contact with thermocouple tip.
  • Loose or worn connection fittings.
  • Heat damage or buildup affecting performance.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off gas supply and electrical power, then ensure the appliance is completely cool.

Step2: Open access panel and detach the old thermocouple from the gas valve and pilot assembly.

Step3: Position the new thermocouple so the tip sits directly in the pilot flame path.

Step4: Secure fittings tightly to the control valve and reassemble all removed components.

Step5: Restore gas, ignite pilot, and confirm stable flame and proper safety shutdown response.
